Documentation EDI-Interface LKW Walter AT - Trainbooking Schema
booking Element
Documentation EDI-Interface LKW Walter AT - Trainbooking Schema > CTIXML Element > bookings Element : booking Element
Namespace (none)

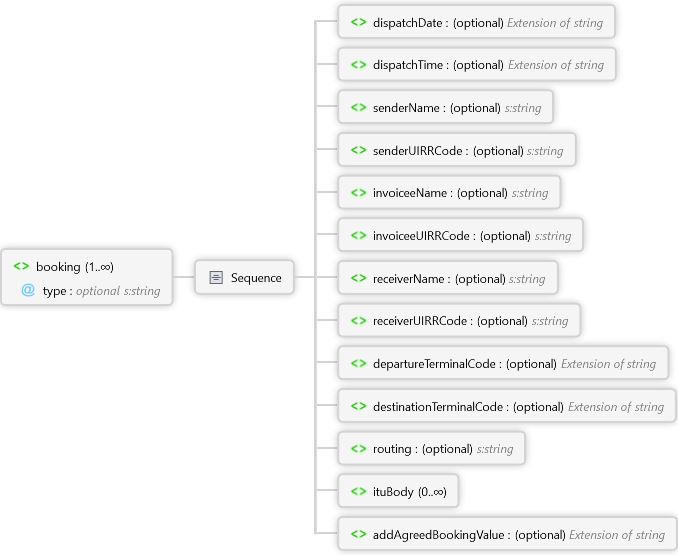

Diagram
addAgreedBookingValue Element ituBody Element routing Element destinationTerminalCode Element departureTerminalCode Element receiverUIRRCode Element receiverName Element invoiceeUIRRCode Element invoiceeName Element senderUIRRCode Element senderName Element dispatchTime Element dispatchDate Element Sequence booking Element
Overview
booking 1..∞
type optional s:string
Sequence
dispatchDate optional Extension of s:string
dateType optional s:string
dispatchTime optional Extension of s:string
timeType optional s:string
senderName optional s:string
senderUIRRCode optional s:string
invoiceeName optional s:string
invoiceeUIRRCode optional s:string
receiverName optional s:string
receiverUIRRCode optional s:string
departureTerminalCode optional Extension of s:string
uic optional s:string
uirr optional s:string
destinationTerminalCode optional Extension of s:string
uic optional s:string
uirr optional s:string
routing optional s:string
ituBody 0..∞
Sequence
senderTransportId s:string
receiverTransportId optional s:string
ituLength optional s:string
ituType optional s:string
grossWeight optional s:string
netWeight optional s:string
taraWeight optional s:string
trainNumber optional s:string
customerRefNumber optional s:string
iluCode optional s:string
ituCode optional s:string
goodsTerm optional s:string
informationText optional s:string
fullEmpty optional s:string
customFormalities optional s:string
priority optional s:string
originTerminal optional Extension of s:string
partner optional s:string
originTransportID optional s:string
un optional s:string
uirr optional s:string
uic optional s:string
endTerminal optional Extension of s:string
partner optional s:string
endTransportID optional s:string
un optional s:string
uirr optional s:string
uic optional s:string
estimatedPickUpDateTimeOtherService optional s:string
closingDateTimeOtherService optional s:string
dangerousGoodsInformation 0..∞
Sequence
description optional s:string
NAGinformation optional s:string
packageQuantity optional s:string
unNumber s:string
netWeight optional s:string
class s:string
packageGroup optional s:string
limitedQuantity optional s:string
wasteMark optional s:string
customsInformation 0..∞
Sequence
documentNumber optional Extension of s:string
type optional s:string
addNumber optional Extension of s:string
type optional s:string
documentType optional s:string
documentDate optional s:string
seller 0..∞
eori optional s:string
vat optional s:string
Sequence
companyName optional s:string
companyStreet optional s:string
companyPostalCode optional s:string
companyCity optional s:string
companyCountry optional s:string
buyer 0..∞
eori optional s:string
vat optional s:string
Sequence
companyName optional s:string
companyStreet optional s:string
companyPostalCode optional s:string
companyCity optional s:string
companyCountry optional s:string
departureCustomsOffice optional s:string
arrivalCustomsOffice optional s:string
addAgreedCustomsValue optional Extension of s:string
type optional s:string
addAgreedBookingValue optional Extension of s:string
type optional s:string
Attributes
NameTypeUseDefaultFixedDescription
types:stringoptional
Source
<s:element name="booking" minOccurs="1" maxOccurs="unbounded" xmlns:s="http://www.w3.org/2001/XMLSchema">
  <s:complexType>
    <s:sequence>
      <s:element name="dispatchDate" minOccurs="0" maxOccurs="1">
        <s:complexType mixed="true">
          <s:simpleContent>
            <s:extension base="s:string">
              <s:attribute name="dateType" type="s:string" />
            </s:extension>
          </s:simpleContent>
        </s:complexType>
      </s:element>
      <s:element name="dispatchTime" minOccurs="0" maxOccurs="1">
        <s:complexType mixed="true">
          <s:simpleContent>
            <s:extension base="s:string">
              <s:attribute name="timeType" type="s:string" />
            </s:extension>
          </s:simpleContent>
        </s:complexType>
      </s:element>
      <s:element name="senderName" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="senderUIRRCode" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="invoiceeName" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="invoiceeUIRRCode" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="receiverName" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="receiverUIRRCode" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="departureTerminalCode" minOccurs="0" maxOccurs="1">
        <s:complexType>
          <s:simpleContent>
            <s:extension base="s:string">
              <s:attribute name="uic" type="s:string" />
              <s:attribute name="uirr" type="s:string" />
            </s:extension>
          </s:simpleContent>
        </s:complexType>
      </s:element>
      <s:element name="destinationTerminalCode" minOccurs="0" maxOccurs="1">
        <s:complexType>
          <s:simpleContent>
            <s:extension base="s:string">
              <s:attribute name="uic" type="s:string" />
              <s:attribute name="uirr" type="s:string" />
            </s:extension>
          </s:simpleContent>
        </s:complexType>
      </s:element>
      <s:element name="routing" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="ituBody" minOccurs="0" maxOccurs="unbounded">
        <s:complexType>
          <s:sequence>
            <s:element name="senderTransportId" type="s:string" minOccurs="1" maxOccurs="1" />
            <s:element name="receiverTransportId" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="ituLength" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="ituType" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="grossWeight" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="netWeight" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="taraWeight" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="trainNumber" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="customerRefNumber" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="iluCode" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="ituCode" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="goodsTerm" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="informationText" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="fullEmpty" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="customFormalities" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="priority" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="originTerminal" minOccurs="0" maxOccurs="1">
              <s:complexType mixed="true">
                <s:simpleContent>
                  <s:extension base="s:string">
                    <s:attribute name="partner" type="s:string" />
                    <s:attribute name="originTransportID" type="s:string" />
                    <s:attribute name="un" type="s:string" />
                    <s:attribute name="uirr" type="s:string" />
                    <s:attribute name="uic" type="s:string" />
                  </s:extension>
                </s:simpleContent>
              </s:complexType>
            </s:element>
            <s:element name="endTerminal" minOccurs="0" maxOccurs="1">
              <s:complexType mixed="true">
                <s:simpleContent>
                  <s:extension base="s:string">
                    <s:attribute name="partner" type="s:string" />
                    <s:attribute name="endTransportID" type="s:string" />
                    <s:attribute name="un" type="s:string" />
                    <s:attribute name="uirr" type="s:string" />
                    <s:attribute name="uic" type="s:string" />
                  </s:extension>
                </s:simpleContent>
              </s:complexType>
            </s:element>
            <s:element name="estimatedPickUpDateTimeOtherService" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="closingDateTimeOtherService" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="dangerousGoodsInformation" minOccurs="0" maxOccurs="unbounded">
              <s:complexType>
                <s:sequence>
                  <s:element name="description" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="NAGinformation" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="packageQuantity" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="unNumber" type="s:string" minOccurs="1" maxOccurs="1" />
                  <s:element name="netWeight" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="class" type="s:string" minOccurs="1" maxOccurs="1" />
                  <s:element name="packageGroup" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="limitedQuantity" type="s:string" minOccurs="0" maxOccurs="1" />
                </s:sequence>
              </s:complexType>
            </s:element>
            <s:element name="wasteMark" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="customsInformation" minOccurs="0" maxOccurs="unbounded">
              <s:complexType>
                <s:sequence>
                  <s:element name="documentNumber" minOccurs="0" maxOccurs="1">
                    <s:complexType>
                      <s:simpleContent>
                        <s:extension base="s:string">
                          <s:attribute name="type" type="s:string" />
                        </s:extension>
                      </s:simpleContent>
                    </s:complexType>
                  </s:element>
                  <s:element name="addNumber" minOccurs="0" maxOccurs="1">
                    <s:complexType mixed="true">
                      <s:simpleContent>
                        <s:extension base="s:string">
                          <s:attribute name="type" type="s:string" />
                        </s:extension>
                      </s:simpleContent>
                    </s:complexType>
                  </s:element>
                  <s:element name="documentType" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="documentDate" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="seller" minOccurs="0" maxOccurs="unbounded">
                    <s:complexType>
                      <s:sequence>
                        <s:element name="companyName" type="s:string" minOccurs="0" maxOccurs="1" />
                        <s:element name="companyStreet" type="s:string" minOccurs="0" maxOccurs="1" />
                        <s:element name="companyPostalCode" type="s:string" minOccurs="0" maxOccurs="1" />
                        <s:element name="companyCity" type="s:string" minOccurs="0" maxOccurs="1" />
                        <s:element name="companyCountry" type="s:string" minOccurs="0" maxOccurs="1" />
                      </s:sequence>
                      <s:attribute name="eori" type="s:string" />
                      <s:attribute name="vat" type="s:string" />
                    </s:complexType>
                  </s:element>
                  <s:element name="buyer" minOccurs="0" maxOccurs="unbounded">
                    <s:complexType>
                      <s:sequence>
                        <s:element name="companyName" type="s:string" minOccurs="0" maxOccurs="1" />
                        <s:element name="companyStreet" type="s:string" minOccurs="0" maxOccurs="1" />
                        <s:element name="companyPostalCode" type="s:string" minOccurs="0" maxOccurs="1" />
                        <s:element name="companyCity" type="s:string" minOccurs="0" maxOccurs="1" />
                        <s:element name="companyCountry" type="s:string" minOccurs="0" maxOccurs="1" />
                      </s:sequence>
                      <s:attribute name="eori" type="s:string" />
                      <s:attribute name="vat" type="s:string" />
                    </s:complexType>
                  </s:element>
                  <s:element name="departureCustomsOffice" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="arrivalCustomsOffice" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="addAgreedCustomsValue" minOccurs="0" maxOccurs="1">
                    <s:complexType>
                      <s:simpleContent>
                        <s:extension base="s:string">
                          <s:attribute name="type" type="s:string" />
                        </s:extension>
                      </s:simpleContent>
                    </s:complexType>
                  </s:element>
                </s:sequence>
              </s:complexType>
            </s:element>
          </s:sequence>
        </s:complexType>
      </s:element>
      <s:element name="addAgreedBookingValue" minOccurs="0" maxOccurs="1">
        <s:complexType>
          <s:simpleContent>
            <s:extension base="s:string">
              <s:attribute name="type" type="s:string" />
            </s:extension>
          </s:simpleContent>
        </s:complexType>
      </s:element>
    </s:sequence>
    <s:attribute name="type" type="s:string" />
  </s:complexType>
</s:element>
See Also
bookings Element | CTIXML Element | Documentation EDI-Interface LKW Walter AT - Trainbooking Schema
