dangerousGoodsInformation Element

Namespace

(none)

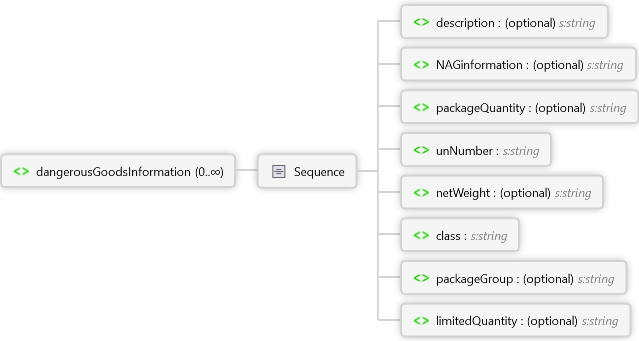

Diagram

Overview

dangerousGoodsInformation 0..∞

Sequence

description optional s:string

NAGinformation optional s:string

packageQuantity optional s:string

unNumber s:string

netWeight optional s:string

class s:string

packageGroup optional s:string

limitedQuantity optional s:string

Source

<s:element name="dangerousGoodsInformation" minOccurs="0" maxOccurs="unbounded" xmlns:s="http://www.w3.org/2001/XMLSchema">
  <s:complexType>
    <s:sequence>
      <s:element name="description" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="NAGinformation" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="packageQuantity" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="unNumber" type="s:string" minOccurs="1" maxOccurs="1" />
      <s:element name="netWeight" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="class" type="s:string" minOccurs="1" maxOccurs="1" />
      <s:element name="packageGroup" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="limitedQuantity" type="s:string" minOccurs="0" maxOccurs="1" />
    </s:sequence>
  </s:complexType>
</s:element>
