customsInformation Element

Namespace

(none)

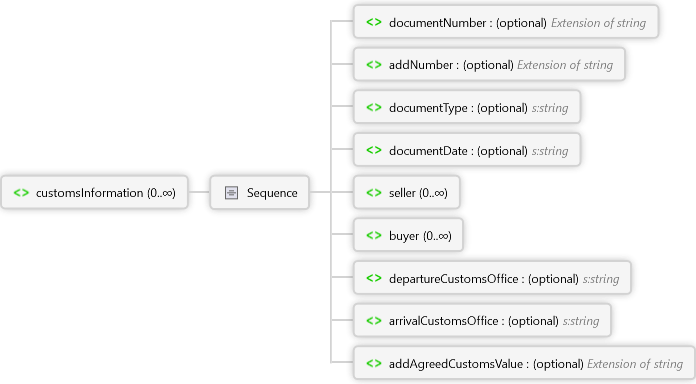

Diagram

Overview

customsInformation 0..∞

Sequence

documentNumber optional Extension of s:string

type optional s:string

addNumber optional Extension of s:string

type optional s:string

documentType optional s:string

documentDate optional s:string

seller 0..∞

eori optional s:string

vat optional s:string

Sequence

companyName optional s:string

companyStreet optional s:string

companyPostalCode optional s:string

companyCity optional s:string

companyCountry optional s:string

buyer 0..∞

eori optional s:string

vat optional s:string

Sequence

companyName optional s:string

companyStreet optional s:string

companyPostalCode optional s:string

companyCity optional s:string

companyCountry optional s:string

departureCustomsOffice optional s:string

arrivalCustomsOffice optional s:string

addAgreedCustomsValue optional Extension of s:string

type optional s:string

Source

<s:element name="customsInformation" minOccurs="0" maxOccurs="unbounded" xmlns:s="http://www.w3.org/2001/XMLSchema">
  <s:complexType>
    <s:sequence>
      <s:element name="documentNumber" minOccurs="0" maxOccurs="1">
        <s:complexType>
          <s:simpleContent>
            <s:extension base="s:string">
              <s:attribute name="type" type="s:string" />
            </s:extension>
          </s:simpleContent>
        </s:complexType>
      </s:element>
      <s:element name="addNumber" minOccurs="0" maxOccurs="1">
        <s:complexType mixed="true">
          <s:simpleContent>
            <s:extension base="s:string">
              <s:attribute name="type" type="s:string" />
            </s:extension>
          </s:simpleContent>
        </s:complexType>
      </s:element>
      <s:element name="documentType" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="documentDate" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="seller" minOccurs="0" maxOccurs="unbounded">
        <s:complexType>
          <s:sequence>
            <s:element name="companyName" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="companyStreet" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="companyPostalCode" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="companyCity" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="companyCountry" type="s:string" minOccurs="0" maxOccurs="1" />
          </s:sequence>
          <s:attribute name="eori" type="s:string" />
          <s:attribute name="vat" type="s:string" />
        </s:complexType>
      </s:element>
      <s:element name="buyer" minOccurs="0" maxOccurs="unbounded">
        <s:complexType>
          <s:sequence>
            <s:element name="companyName" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="companyStreet" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="companyPostalCode" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="companyCity" type="s:string" minOccurs="0" maxOccurs="1" />
            <s:element name="companyCountry" type="s:string" minOccurs="0" maxOccurs="1" />
          </s:sequence>
          <s:attribute name="eori" type="s:string" />
          <s:attribute name="vat" type="s:string" />
        </s:complexType>
      </s:element>
      <s:element name="departureCustomsOffice" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="arrivalCustomsOffice" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="addAgreedCustomsValue" minOccurs="0" maxOccurs="1">
        <s:complexType>
          <s:simpleContent>
            <s:extension base="s:string">
              <s:attribute name="type" type="s:string" />
            </s:extension>
          </s:simpleContent>
        </s:complexType>
      </s:element>
    </s:sequence>
  </s:complexType>
</s:element>
