status Element

Namespace

(none)

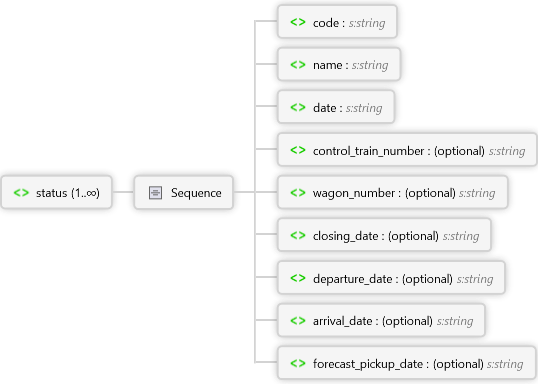

Diagram

Overview

status 1..∞

Sequence

code s:string

name s:string

date s:string

control_train_number optional s:string

wagon_number optional s:string

closing_date optional s:string

departure_date optional s:string

arrival_date optional s:string

forecast_pickup_date optional s:string

Source

<s:element name="status" minOccurs="1" maxOccurs="unbounded" xmlns:s="http://www.w3.org/2001/XMLSchema">
  <s:complexType>
    <s:sequence>
      <s:element name="code" type="s:string" minOccurs="1" maxOccurs="1" />
      <s:element name="name" type="s:string" minOccurs="1" maxOccurs="1" />
      <s:element name="date" type="s:string" minOccurs="1" maxOccurs="1" />
      <s:element name="control_train_number" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="wagon_number" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="closing_date" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="departure_date" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="arrival_date" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="forecast_pickup_date" type="s:string" minOccurs="0" maxOccurs="1" />
    </s:sequence>
  </s:complexType>
</s:element>
