transport Element
Documentation EDI-Interface LKW Walter AT - Status Schema > cesar_download Element : transport Element
Namespace (none)

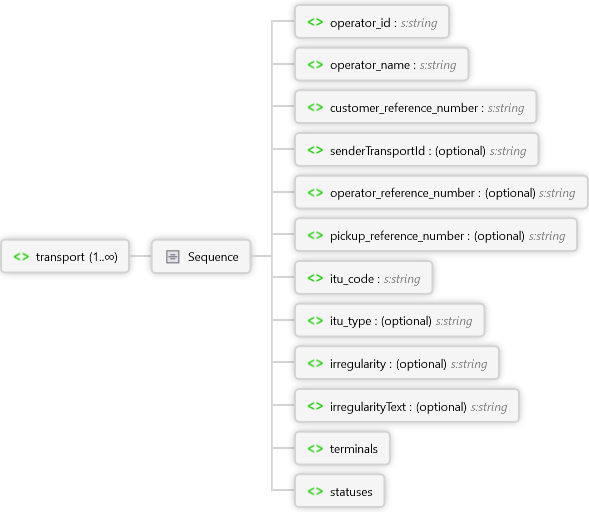

Diagram
statuses Element terminals Element irregularityText Element irregularity Element itu_type Element itu_code Element pickup_reference_number Element operator_reference_number Element senderTransportId Element customer_reference_number Element operator_name Element operator_id Element Sequence transport Element
Overview
transport 1..∞
Sequence
operator_id s:string
operator_name s:string
customer_reference_number s:string
senderTransportId optional s:string
operator_reference_number optional s:string
pickup_reference_number optional s:string
itu_code s:string
itu_type optional s:string
irregularity optional s:string
irregularityText optional s:string
terminals
Sequence
departure
Sequence
code s:string
name optional s:string
destination
Sequence
code s:string
name optional s:string
statuses
last_status_code optional s:string
last_status_name optional s:string
last_status_date optional s:string
Sequence
status 1..∞
Sequence
code s:string
name s:string
date s:string
control_train_number optional s:string
wagon_number optional s:string
closing_date optional s:string
departure_date optional s:string
arrival_date optional s:string
forecast_pickup_date optional s:string
Source
<s:element name="transport" minOccurs="1" maxOccurs="unbounded" xmlns:s="http://www.w3.org/2001/XMLSchema">
  <s:complexType>
    <s:sequence>
      <s:element name="operator_id" type="s:string" minOccurs="1" maxOccurs="1" />
      <s:element name="operator_name" type="s:string" minOccurs="1" maxOccurs="1" />
      <s:element name="customer_reference_number" type="s:string" minOccurs="1" maxOccurs="1" />
      <s:element name="senderTransportId" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="operator_reference_number" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="pickup_reference_number" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="itu_code" type="s:string" minOccurs="1" maxOccurs="1" />
      <s:element name="itu_type" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="irregularity" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="irregularityText" type="s:string" minOccurs="0" maxOccurs="1" />
      <s:element name="terminals" minOccurs="1" maxOccurs="1">
        <s:complexType>
          <s:sequence>
            <s:element name="departure" minOccurs="1" maxOccurs="1">
              <s:complexType>
                <s:sequence>
                  <s:element name="code" type="s:string" minOccurs="1" maxOccurs="1" />
                  <s:element name="name" type="s:string" minOccurs="0" maxOccurs="1" />
                </s:sequence>
              </s:complexType>
            </s:element>
            <s:element name="destination" minOccurs="1" maxOccurs="1">
              <s:complexType>
                <s:sequence>
                  <s:element name="code" type="s:string" minOccurs="1" maxOccurs="1" />
                  <s:element name="name" type="s:string" minOccurs="0" maxOccurs="1" />
                </s:sequence>
              </s:complexType>
            </s:element>
          </s:sequence>
        </s:complexType>
      </s:element>
      <s:element name="statuses" minOccurs="1" maxOccurs="1">
        <s:complexType>
          <s:sequence>
            <s:element name="status" minOccurs="1" maxOccurs="unbounded">
              <s:complexType>
                <s:sequence>
                  <s:element name="code" type="s:string" minOccurs="1" maxOccurs="1" />
                  <s:element name="name" type="s:string" minOccurs="1" maxOccurs="1" />
                  <s:element name="date" type="s:string" minOccurs="1" maxOccurs="1" />
                  <s:element name="control_train_number" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="wagon_number" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="closing_date" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="departure_date" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="arrival_date" type="s:string" minOccurs="0" maxOccurs="1" />
                  <s:element name="forecast_pickup_date" type="s:string" minOccurs="0" maxOccurs="1" />
                </s:sequence>
              </s:complexType>
            </s:element>
          </s:sequence>
          <s:attribute name="last_status_code" type="s:string" />
          <s:attribute name="last_status_name" type="s:string" />
          <s:attribute name="last_status_date" type="s:string" />
        </s:complexType>
      </s:element>
    </s:sequence>
  </s:complexType>
</s:element>
